INFOCOMM ASIA, HONG KONG, November 17, 2010
— Xantech
(booth 16A08), a leader in the field of audio/video remote control

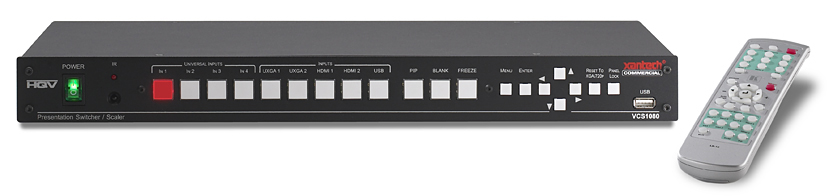

and distribution for 40 years, is introducing its Model VCS1080
nine-input presentation scaler/switcher for use with analog and
digital video, together with unbalanced stereo and S/PDIF audio
signals. The VCS1080 accepts NTSC, PAL and SECAM standard video
in composite, S-Video or component video format, as well as JPEG
inputs, via RCA, 15-pin HD, HDMI and USB connectors. The user-friendly
features can be controlled from the 1RU unit’s front panel
buttons, IR remote with onscreen menus, or by using RS-232 commands.
A key feature is that the HDMI and VGA outputs are active at the
same time – the benefit of two active outputs allows the
user to distribute video to a projector and a flat-screen panel
simultaneously. Applications include conference rooms, classrooms
and other presentation systems.
The VCS1080 incorporates IDT HQV® video processing to ensure
high quality scaling for large audience presentation applications
requiring conversion and switching of multiple formats of standard-
and high-definition video as well as graphic data signals. The
HDTV-compatible and HDCP-compliant 1RU unit supports 720p, 1080i,
and 1080p HDTV output resolutions. Glitch-free display is achieved
through incorporated fade-thru-black (FTB) technology, which fades
one source to black and the next from black for a smooth, seamless
switch between video inputs.
Flexible presentation capabilities include the positioning of
any video or computer graphics video source as a picture-in-picture,
picture-and-picture, or split screen display, with comprehensive
window positioning and sizing control. Aspect ratio selection
includes 4:3, 16:9, anamorphic, letterbox, plus user-definable
settings. Freeze, zoom, selectable vertical refresh rates, text
overlay, and slide show features are also provided.
Rear panel connections include four universal video input sources,
each on three RCA connectors, two UXGA 15-pin HD computer graphics
video inputs, and one USB connector for JPEG data. Composite,
S-Video, and component (including HDTV compatible) video formats
to NTSC, PAL and SECAM standards are all supported. Scaled video
outputs are available on HDMI and 15-pin HD connectors. A full-featured
remote control is also included.
Four unbalanced analog stereo or digital S/PDIF (32 kHz to 96
kHz sample rate) audio inputs accompanying the universal video
inputs are each accommodated by two RCA connectors, with two 3.5
mm mini-jack stereo connectors available for the UXGA sources,
all with individual level control. Audio outputs are on S/PDIF
and stereo audio RCA connectors. All audio inputs are also transcoded
and embedded onto the HDMI output.
Other features include adjustable audio delay, video source stabilization
though time base correction, and optimization of video and audio
inputs via the onboard ProcAmp. The Xantech VCS1080 also includes
horizontal and vertical compensation control for off-axis projector
placement.
Additional features:
•Includes the highest quality de-interlacing (with 3:2 &
2:2 pull down), noise reduction,
and scaling performance for both standard-definition and high-definition
signals.
•Supports HDMI 1.3 and HDCP.
•Video Inputs - 4 universal video (composite, s-Video, component)
each on 3 RCAs, 2
computer graphics video (15-pin HD), 2 HDMI and 1 USB (for JPEG
data).
•Multi-Standard - Auto, NTSC (3.58/4.43), PAL (M/N/60) &
SECAM.
•Scaled Video Outputs - HDMI & 15-pin HD.
•Computer Graphics Output Resolutions - 23 plus a user definable
custom output
resolution with selectable refresh rates.
•Multiple Aspect Ratio Selections. - 4x3 or 16x9, anamorphic,
letter box, and user-definable settings.
•Companion AFV (Audio-Follow-Video) for Every Analog Video
Input - Supports
embedded audio on the 2 HDMI inputs and outputs.
•Audio Inputs - 4 (stereo audio or S/PDIF on 2 RCAs) for each
of the 4 universal video
inputs, 2 stereo audio (on 3.5mm mini jack connectors) for the 2
computer graphics
video inputs. Each with level adjustment.
•Audio Outputs - S/PDIF and stereo audio (RCAs). Transcodes
stereo or S/PDIF audio
to both stereo and S/PDIF audio and embeds audio onto the HDMI output.
Master
volume control.
•Audio Delay - Adjustable from 0 to 340 msec.
•Built-in Time Base Corrector - Stabilizes unstable video sources.
•Built-in ProcAmp - Color, hue, sharpness, contrast, and brightness
are set individually
for each input.
•Text Overlay.
•Front Panel Lockout.
•Front Panel Freeze Frame.
•Video Blanking - Blue or black screen selectable.
•Zoom - 100% to 400%.
•Flexible Control Options - Front panel, IR remote (with on-screen
menus) & RS-232.
•Worldwide Power Supply - 100-240V AC.•
Standard 19” Rack Mount Size - 1U. Rack "ears" included. |
